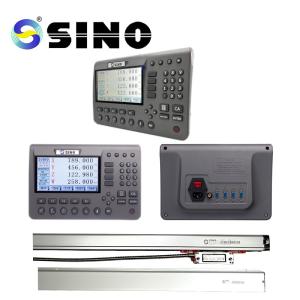

4-Axis Digital Readout Display Meter Set SINO SDS200 Milling DRO Kit For CNC Lathe Grinding Machines EDM
SINO SDS200 Metal 4 Axis LCD Digital Readout Display Kit KA-300 Linear Scale
The LCD display accepts all Chinese optical linear glass scales and widely used for lathe, drilling, boring and milling machine.
It can exchange Chinese & English by system in one display, more functional for lathe & milling machine for the users from different countries.
four axis display accessories include: Support rod/screw/user manual/support bracket/power cord/protective cover
Funnctions of Sino SDS200 DRO Optical Scale
Zero adjustment;Automatic middling;Absolute/relative conversion;Mm/inch measurement conversion;Radius/diameter
conversion;Brightness adjustment/display language setting/buzzer setting;Calculation function;200 tool storeroom;Taper
measurement;linear error compensation
Specifications for Sino Linear scale encoder
The SDS200 offers a high performance universal display console with Milling, Lathe and Grinding functions.
This 4 axis model allow up to 4 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.
Durable front panel membrane with tactile switches and robust die cast housing.
Large easy to read LCD display.
Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.
Package list:
| Item name | 4 axes digital display unit |
| Digital Readout (DRO) | SDS200 |
| Linear scale for axis X | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Y | KA-600 / KA-300: 70-3000mm |
| Linear scale for axis Z | KA-600 / KA-300: 70-3000mm |
| Others | Cable / Screws / Manual |
Detail Information of SDS200 digital readout systems
Pin Description:
