3 Pieces KA-300-970mm Glass Linear Scale SINO SDS2-3VA 3 Axis LCD Digital Readout

3 Pieces KA-300-970mm Glass Linear Scale SINO SDS2-3VA 3 Axis LCD Digital Readout

These features make the graphics function easier to use. It is the first factory in China to use a 16- and 32-bit calculator in a DRO system, and it has an input frequency of up to 5 MHZ with A/B, making it the most advanced in the world.

SDS2-3VA DRO System Features:

Machining Path Verification: The digital readout system can be used to verify the machining path and ensure that it matches the intended design. By comparing the actual tool position with the programmed path, it helps detect any deviations or errors in the machining process.

Measurement Repeatability: With its preset functions, the SDS2-3VA allows for the storage and recall of specific measurement values. This is particularly useful for repetitive machining tasks, where the system can quickly and accurately reproduce previously measured dimensions, improving efficiency and consistency.

Specifications of SINO SDS2-3VA digital readout system + linear scale encoder

The SDS2-3VA offers a high performance universal display console with Milling, Lathe and Grinding functions.

This 3 axis model allow up to 3 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.

Durable front panel membrane with tactile switches and robust die cast housing.

Large easy to read LCD display.

Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

Product image /photos:

The rack in the picture is optioned, not standard product.

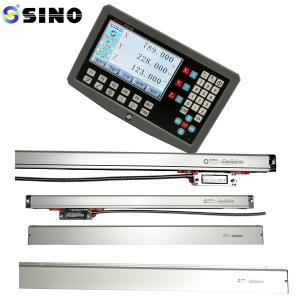

3 Pieces Glass Linear Scale

SINO SDS2-3VA Glass Linear Scale

3 Pieces KA-300-970mm Glass Linear Scale SINO SDS2-3VA 3 Axis LCD Digital Readout Images
